CDC MC ROUTER

CDC MC Router provides routing performance for MegaCOMMS networks.

  1. ■ 2U MegaCOMMS router
  2. ■ Can store 8 user-defined circuit diagrams
  3. ■ PC software allows users to customize the routing diagram
  4. ■ MegaCOMMS network increases latency by less than 0.01ms
  • introduce
  • characteristic
  • inquiry

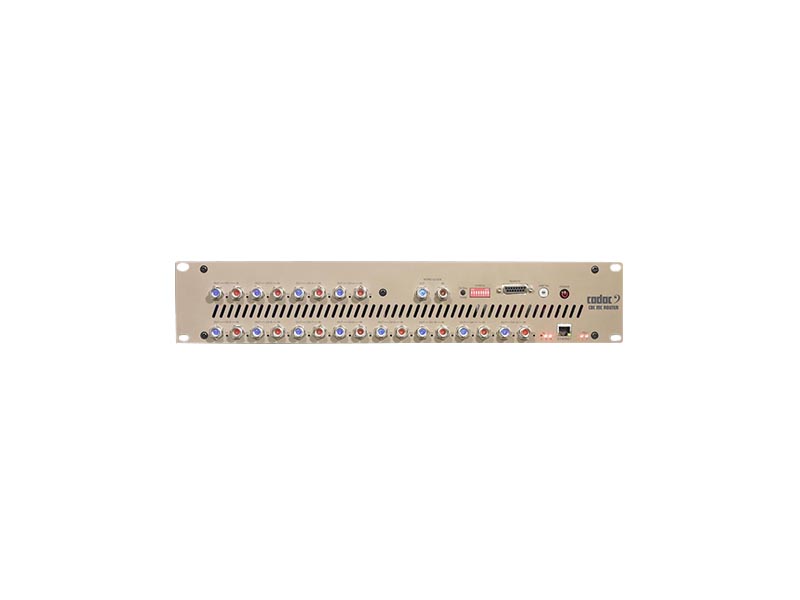

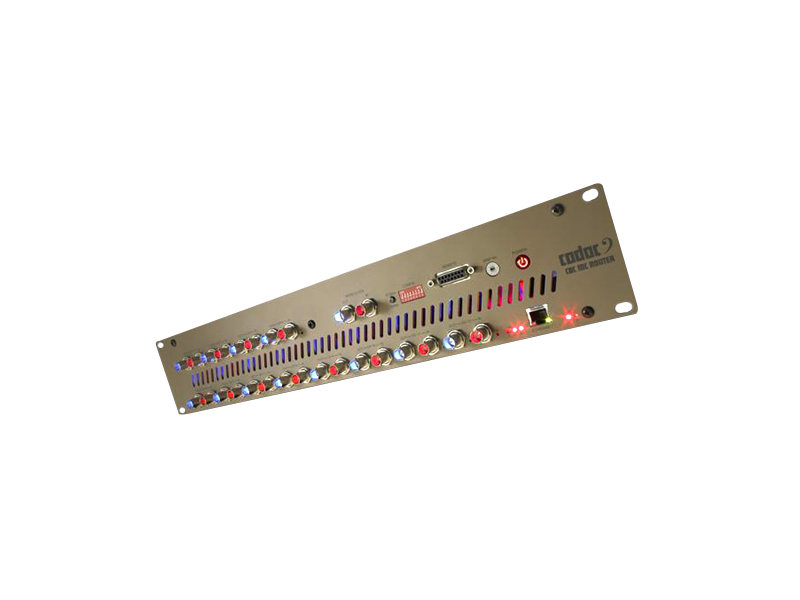

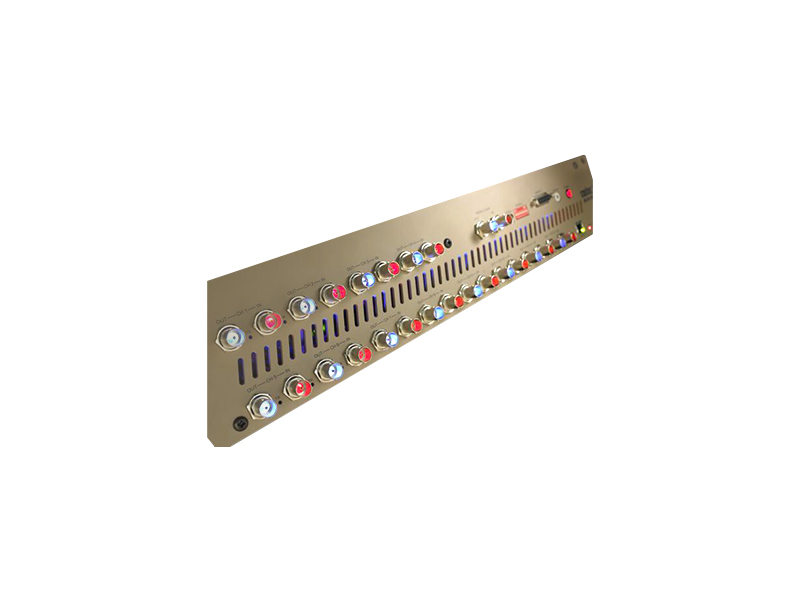

The CDC MC Router provides routing performance for MegaCOMMS network. This 2U unit with 12 pairs of MegaCOMMS interfaces can connect up to 4 MegaCOMMS mixing consoles with gain compensation, allowing 8 MegaCOMMS units to be connected on the same audio network. It can be used to extend the number of channels of the audio network up to 3072.

The CDC MC Router PC software allows end users to design their own routing drawings through a simple graphical interface to build a powerful MegaCOMMS network quickly and easily. The router automatically discovers connected MegaCOMMS devices and the software's graphical user interface displays the features and firmware versions of the connected devices.

The router can also control gain compensation between mixing consoles, automatically compensating for gain changes caused by adjustments of the main console on other consoles in the same network, without affecting the sound quality.


  • 2U router

  • 12 pairs of MegaCOMMS interfaces per router, each with up to 128 bi-directional 96 kHz 24 bit audio channels

  • Stores up to 8 user-defined circuit diagrams

  • Computer software allows users to customize circuit diagrams

  • Network increase latency of less than 0.01 milliseconds

  • Universal network coaxial interface for receiving or transmitting bright red or blue light

  • Standard dual power supply
