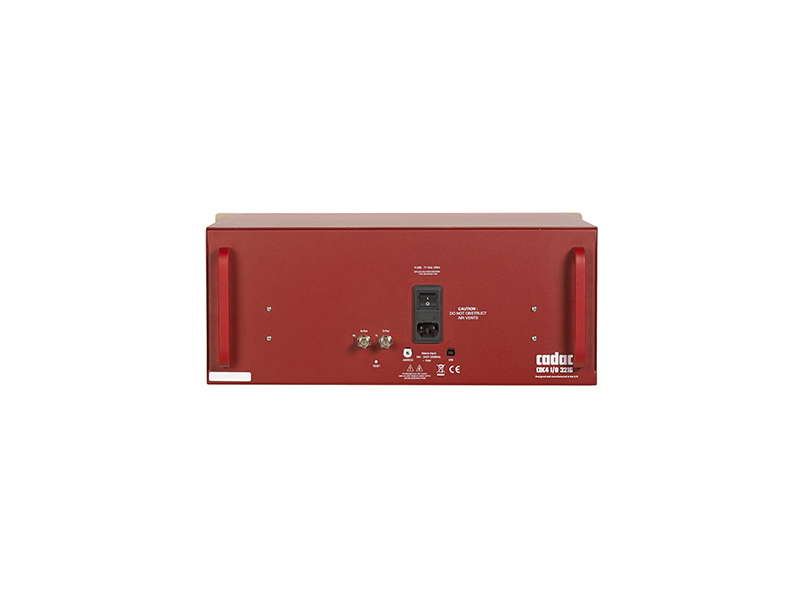

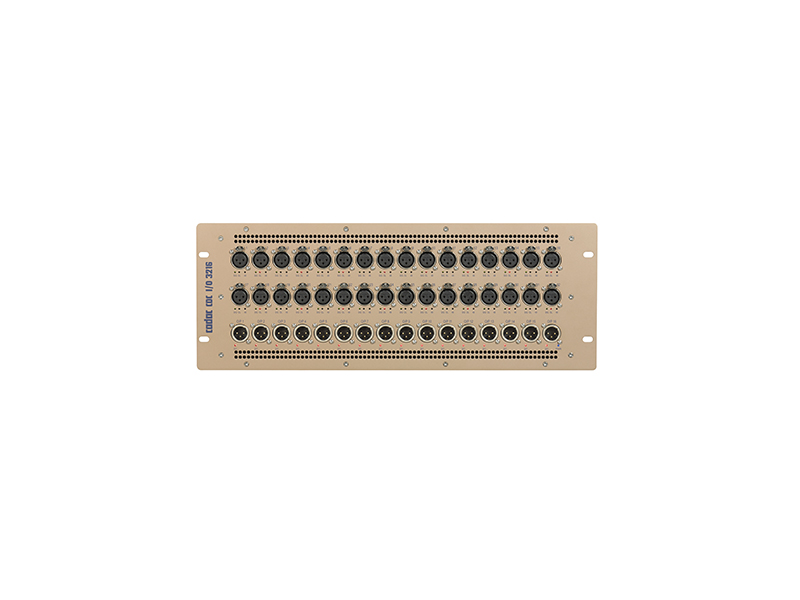

The CDC I/O 3216-C is a 4U fixed construction unit with 32 mic/line analog inputs and 16 XLR analog outputs. A dedicated low-latency MegaCOMMS audio network protocol is used to connect the stage box to the mixing console. Using only one pair of coaxial cable connections, the CDC I/O3216-C can be placed up to 150 meters away from the mixing console. The microphone preamp can be remotely controlled on the mixing console, and the output can be distributed. To complete the user interface, indicators are provided including signal/overload/phantom power status indication, plus mute indication for the outputs.
CDC I/O 3216-C
The CDC I/O 3216-C is a 4U fixed construction unit with 32 mic/line analog inputs and 16 XLR analog outputs.
- ■ 4U fixed construction
- ■ Provides 32 additional Cadac mic/line inputs on stage
- ■ Provides 16 stage line outputs
- ■ One pair of MegaCOMMS interfaces
4U fixed construction
Provides an additional 32 Cadac mic/line inputs on stage
Provides 16 stage line outputs
One pair of MegaCOMMS connectors
| Size | 482.6mm*177.8mm*435.9mm |
| Weight | 10.9kg |
-
