CM- SR24

Cadac's SR series stage boxes provide comprehensive and feature-rich remote I/O up to 2,000 meters from the mixing consoles via Cadac's proprietary low-latency MegaCOMMS network protocol.

  1. ■ Analog control port: gain, 48V, PAD, mute and monitor
  2. ■ AES control port: direction, clock, sample rate, channel and monitor
  3. ■ Word clock mode: master or slave
  • introduce
  • characteristic
  • inquiry

CM-SR24 is a product in Cadac's CM stage box series, which is considered by many audio professionals to be the best preamplifier in the industry.

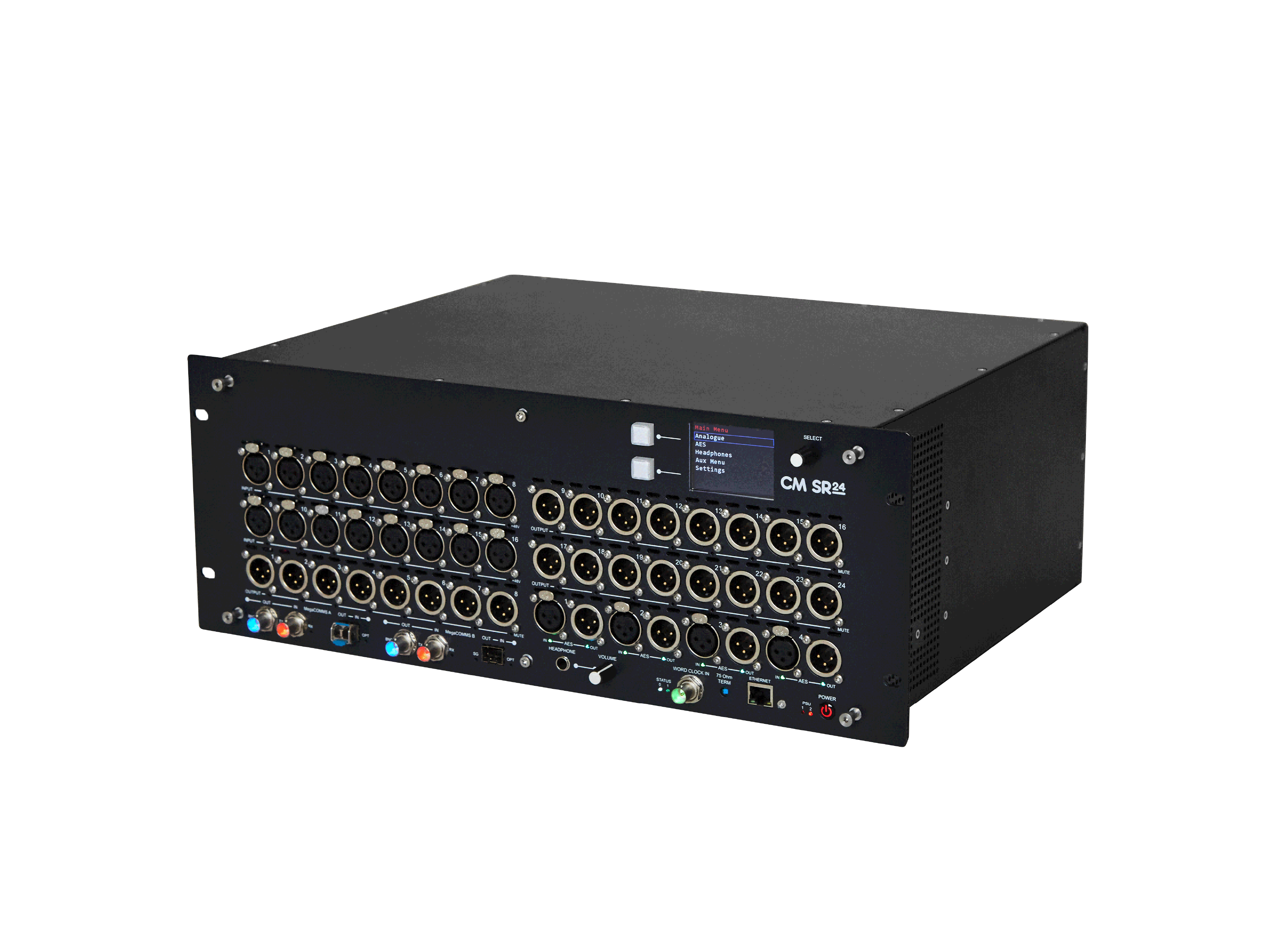

CM-SR24 is a product with two 4U height stage boxes,equipped with 16 analog inputs and 24 analog outputs, as well as 8 AES3 inputs and 8 AES3 outputs. The 2.4" color LCD displays a comprehensive menu structure, and allows for setting locally to adjust input levels, microphone gain, and phantom power. The integrated preamplifier enhances usability, saves time, and can monitor audio directly on the stage rack.

This product device has dual MegaCOMMS port - BNC or LC fiber optic port - for redundant connection up to 2 kilometers from the console, and is also pre configured with dual redundant internal PSUs for mission critical applications.

Suitable for use with CMJ50.

Function Overview

1. Intuitive menu structure

2. Analog control ports: gain, 48V, PAD, mute and monitor

3. AES control ports: direction, clock, sample rate, channel and monitor

4. Word clock mode: master or slave

5. Word clock selection: 44.1, 48 or 96kHz

6. Transmission mode

7. Optical connection allows the rack position on the stage to be up to 2000 meters away from the mixing console.

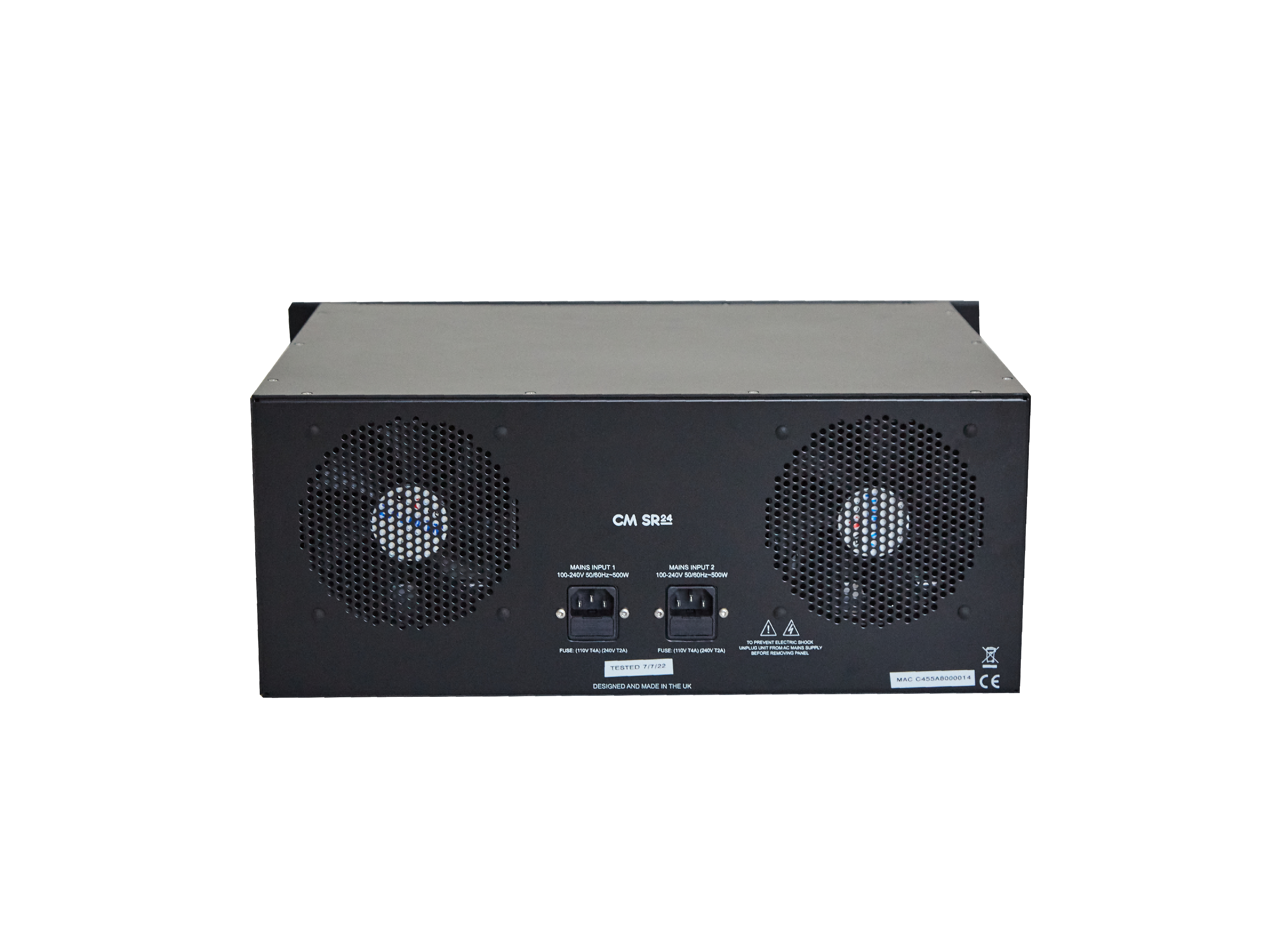

8. All audio connections and controls are on the front panel, with only the power connection at the rear panel.

9. Compact, lightweight aluminum construction

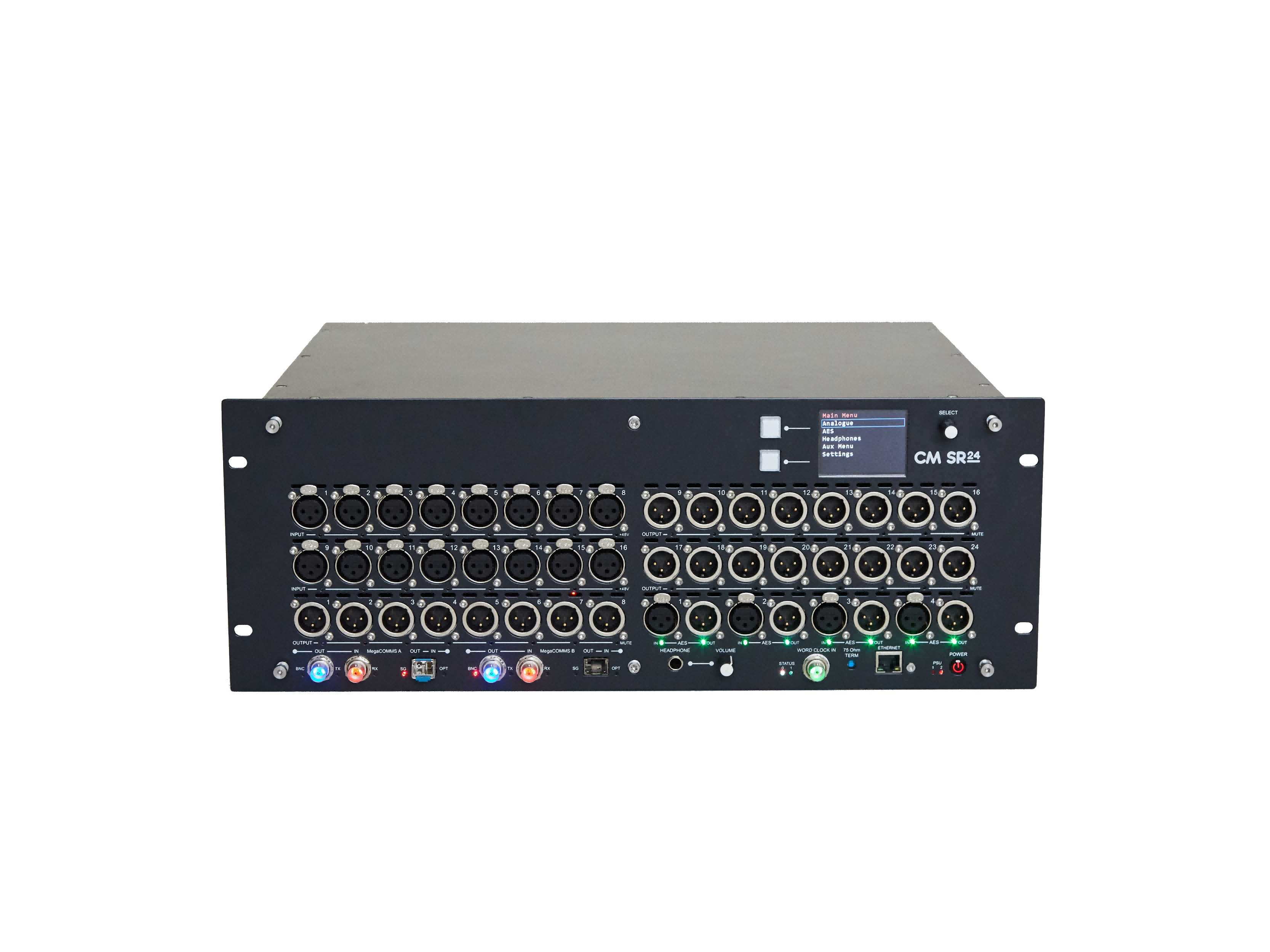

Hardware Overview

1. 2.4-inch color LCD system control

2. The knob allows for simple menu navigation

3. There are 16 to 56 fully programmable balanced mic inputs on the XLR socket

4. 48V LED indicator light on analog input

5. MUTELED indicator light on analog output

6. 8 AES3 inputs (with SRC) and 8 XLR outputs

7. 96kHz internal word clock

8. Two pairs of MegaCOMMS ports with BNC connectors and two Duplex fiber optic LC ports

9. 1/4-inch stereo headphone socket with attenuator

10. Dual internal redundant auto-switching PSU
