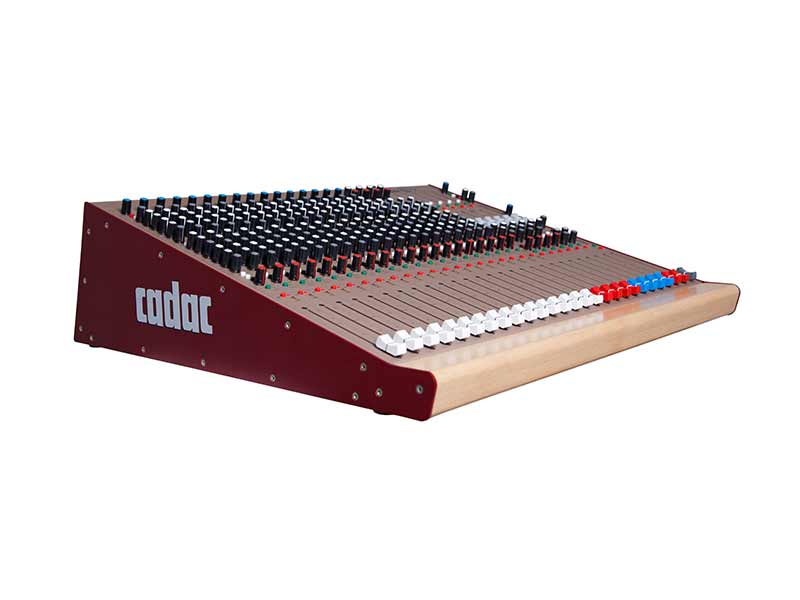

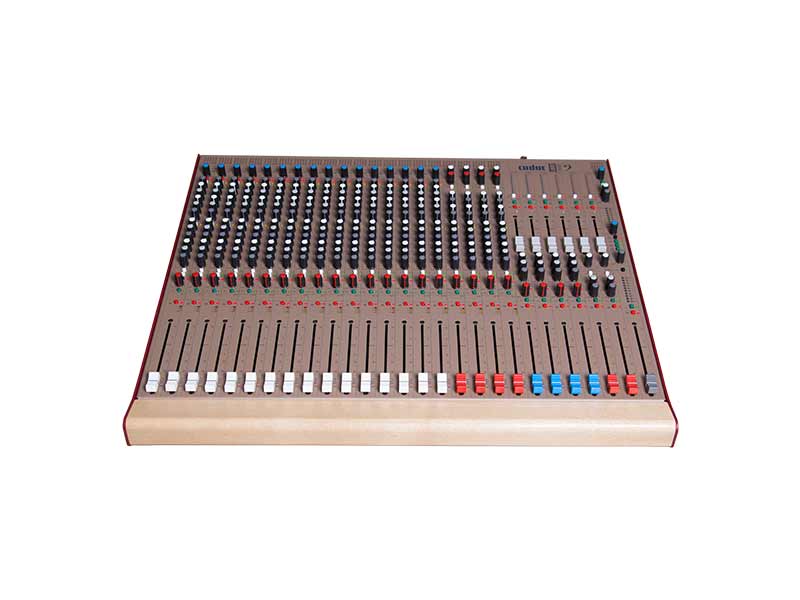

Live1 2442 is the first Cadac compact mixing console design. It is a completely customized product that inherits the company's excellent tradition of analog technology and once dominated the musical theater and tour production. The core value of Cadac's excellent audio technology is conveyed to customers at a very cost-effective price, opening a new market and application of professional analog mixing console.

Live1 2442 is proficient in various markets,from small clubs, tours, corporate events to theaters, houses of worship, and recording studios. Its sound quality and flexibility make it an ideal choice for various applications, including monitoring, mixing, sub mixing, live and engineering recording applications, and it is also the perfect analog front-end for DAWs.

A new mic amplifier design uses the latest engineering and component technology to improve the audio performance of live1 2442 to the level of the legendary large Cadac mixing console, making the huge difference in price completely invisible. An industry-approved Cadac 4-band EQ with 2 sweeping filters further makes the Cadac sound incomparable, fully demonstrating its sensitivity and musicality.

The LIVE1 2442 is a rack-mountable mixing console with 19" rack mount connectors. The compact body packs a lot of features for optimum flexibility, portability, durability and outstanding sound quality.

Application scenarios: Suitable for various markets, from small clubs, tours, corporate events to theaters, places of worship, and recording applications in multiple scenarios.

  • Cadac analog mic amplifier

  • Ultra-high cost-effectiveness

  • 16 mic inputs + 4 stereo inputs

  • New high-performance mic amplifier circuit for line inputs

  • 4-band EQ with 2 mid-frequency sweep

  • 6 aux sends pre/post fader selectable in pairs

  • 6 mono and 2 stereo aux returns

  • 4 groups with 100mm faders, PFL, mute and pan control

  • Comprehensive monitoring and level meters

  • 100mm high-quality input faders

  • High-quality steel construction

  • Sturdy 2U 19" power supply


Features
Inputs (all)35
Mono inputs with breakpoints16
Stereo inputs (linear)4
Stereo effect return (linear)2
Mono aux returns (linear)6
Talkback Mic1
Buses15
Subgroups4
Auxes pre-fader (monitor)6
Auxes post-fader (effect)6
Auxes pre/post fader selectable6
Total outputs L/R2
PFL (mono)1
AFL (Stereo)2

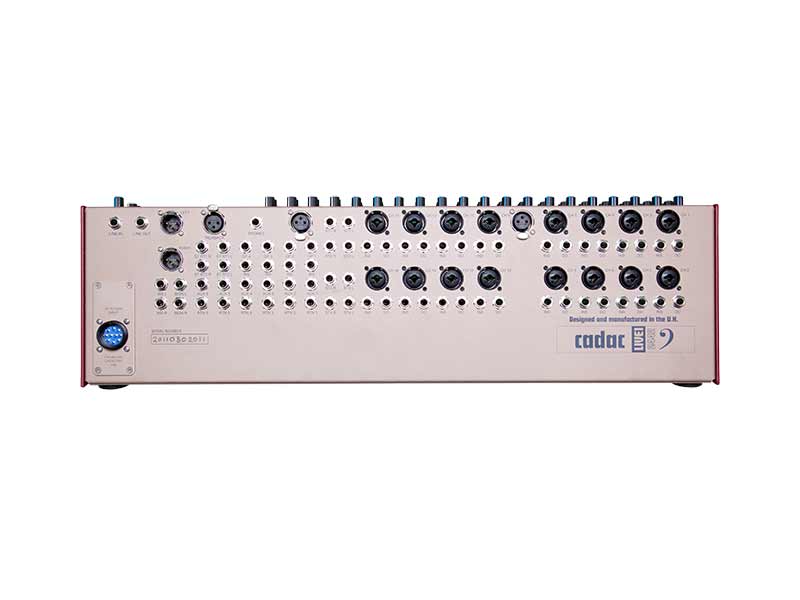

Outputs
Groups with breakpoints4
Aux outputs6
Total outputs with breakpoints2
Monitor outputs2
Direct outputs16
Stereo headphone output1
Rated Features
Table light outputs (12V/5W)2
19" rack optionNone
Channel16mono 4stereo
Auxes6mono (pre/post fader pairs selectable)
Groups4
Stereo effect returns4(2stereo)
Mono effect returns6
Output impedance15k Ohm Electron balance
Output50 Ohm(balanced outputs)
Npminal input level0dBu
Maximum input level+21dBu (balanced), +10dBu (unbalanced)
Maximum output leve+21dBu(balance)
CMRR-50dBu(20Hz to 20kHz)
S/N Ratio-89dB overall gain
Dynamic range11dB,20Hz to 20kHz unweighted
THD+N less than0.02%,(20 Hz to 20 kHz)
THD less than0.005%,(20 Hz to 20 kHz)
Frequency response20 Hz to 60 kHz 0.5 dB
Crosstalk -80 dBu (20 Hz to 20 kHz)
Phase response5°@20 Hz
Dimensions612mm*173.5mm539.3mm
Weight17.9kg
